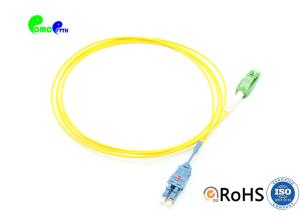

Polarity Switchable Uniboot LC Fiber Optic Patch Cable LC APC - LC UPC Unit Tube Duplex 2.0mm Patch Cord Jumper

Name: Polarity Switchable Uniboot LC Fiber Optic Patch Cable LC APC LC UPC Unit Tube Duplex 20mm Patch Cord Jumper
Brand: OMC or OEM
Price: 1 USD

Wholesale Polarity Switchable Uniboot LC Fiber Optic Patch Cable LC APC - LC UPC Unit Tube Duplex 2.0mm Patch Cord Jumper from china suppliers

Brand Name : OMC or OEM

Model Number : Polarity Switchable Uniboot LC Fiber Optic Patch Cables LC APC - LC UPC Unit-tube Duplex 2.0mm Single Mode 9/125um LSZH

Certification : ROHS and ISO

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 200000 per month

Delivery Time : 3-7 work days

Packaging Details : one peace in box, several pieces in cartoon

Products : Polarity Switchable Uniboot LC Fiber Optic Patch Cables LC APC - LC UPC Unit-tube Duplex 2.0mm Single Mode 9/125um LSZH

Push/Pull Tab : Yes available

Fiber Mode : 9/125um

Polarity Switchable : Yes

Insertion Loss : ≤0.3dB

Return Loss : APC≥60dB, UPC≥60dB

Fiber Grade : OS1, OS2

Fiber Count : 2F

Cable Diameter : Uni-tube 2.0mm Duplex

Cable Jacket : PVC/LSZH/OFNP

Contact Now

Polarity Switchable Uniboot LC Fiber Optic Patch Cables LC APC - LC UPC Unit-tube Duplex 2.0mm Single Mode 9/125um LSZH

The Polarity Switchable uniboot LC connector With Push/Pull Tap is a Chinese independent intellectual property rights connector. It has a unique design that allows to switch polarity without using any tooling. The Push/Pull Tap is very easy to grab to Insert and pull out from LC adapter. One more Great design is that the tap can be removed after insertion. Makes the installation Job become easy and high efficient.
The Uni-boot LC patch cable utilizes a special “round duplex” cable that allows duplex transmission within a single 2mm cable ,cable materials including LSZH, Plenum and Riser.

Our Polarity Switchable uniboot LC fiber patch cable reduces cable management space by up to 68% compared to standard patch cables. It reduces cable management space comparing to standard patch cables. As a result of these features our uniboot patch cable offers improved airflow and visibility of equipment within a high density network en-vironment.
OMC's LC Uniboot cable assemblies offer the best solution for high-density applications, data centers, interconnect and cross connector, private networks and premise installations.

Products details.

Polarity Switchable Uniboot LC Fiber Optic Patch Cable LC APC - LC UPC Unit Tube Duplex 2.0mm Patch Cord Jumper

Optical Specifications:

Polarity Switchable Uniboot LC Fiber Optic Patch Cable LC APC - LC UPC Unit Tube Duplex 2.0mm Patch Cord Jumper

Fiber Connector	Push/Pull Tab Uniboot LC To Push/Pull Tab LC Uniboot	Fiber Type	SM:Yellow/Blue/White;
Cable OD&Jacket	1.6mm/1.7mm,/1.8mm/2.0 mm PVC/LSZH	Fiber Counts	2 Fibers
Insertion Loss	≤0.3dB(IEC Grade C) ≤0.12dB(IEC Grade B)	Return Loss	SM UPC ≥ 50dB(min) SM APC ≥ 60dB(min) MM PC ≥ 35dB(min)
Pull-out Force	100N	Durability	500 Cycles
AB Polarity Switchable	Available	Operating Temperature	-40 to + 85°C

End-face Quality (SM)

Zone	Range (μm)	Scratches	Defects	Reference
A: Core	0 to 25	None	None	IEC 61300-3 -35:2015
B: Cladding	25 to 115	None	None
C: Adhesive	115 to 135	None	None
D: Contact	135 to 250	None	None
E: Rest of ferrule		None	None

Length Tolerance

Overall Length(L)(m)	length of tolerance(cm)
0<L<1	+5/-0
1<L<10	+10/-0
10<L<40	+15/-0
40<L	+0.5% x L/-0

Product Highlights

Switchable + Uniboot LC Push/Pull tab patch Cable

The duplex LC connector for 2.0mm round cable, which allows the polarity to be switched from A-B to A-A

Polarity Switchable Uniboot LC Fiber Optic Patch Cable LC APC - LC UPC Unit Tube Duplex 2.0mm Patch Cord Jumper

High Quality Fibre Optic Cable Guarantee

Comprehensive performance testing makes sure the cable work more securely and data transmission more reliable and stable in your network.

Polarity Switchable Uniboot LC Fiber Optic Patch Cable LC APC - LC UPC Unit Tube Duplex 2.0mm Patch Cord Jumper

Company Information:

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

Polarity Switchable Uniboot LC Fiber Optic Patch Cable LC APC - LC UPC Unit Tube Duplex 2.0mm Patch Cord Jumper
